ACL CSC400-FD Forced Draft Burner Management System/Combustion Safety Controller

The ACL Forced Draft CSC400-FD Combustion Safety Controller is a leading edge burner management system which provides burner ignition and air/fuel ratio control for forced draft burner applications. It monitors three separate thermocouple inputs that can be used for temperature control in process applications such as tanks, heater/treaters, fired separators, line heaters, re-boilers or any other applications where accurate temperature monitoring and/or control is required. The CSC400-FD can be configured to be used on forced draft incinerators, combustors, and air-assisted flare stacks as well. The CSC400-FD provides control for fuel and air ratios for fine tuning. Modbus communications for measurement and control is provided as standard.



ACL CSC400-FD Spec Sheet

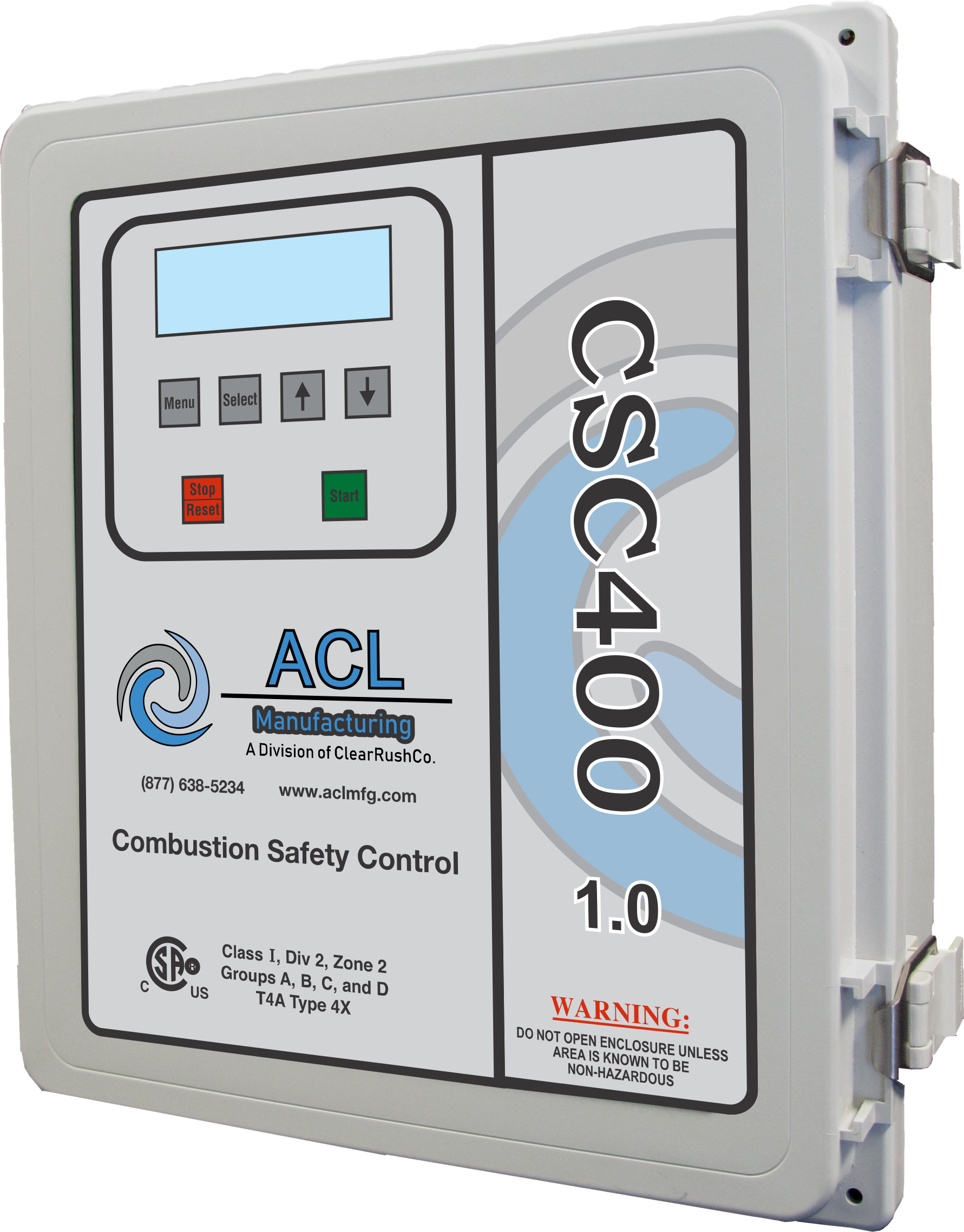

ACL CSC400 Burner Management Systems/Combustion Safety Controller

The ACL CSC400 Combustion Safety Controller is a leading edge burner management system which provides burner ignition and flame fail sensing for single or dual burner applications. It monitors three separate thermocouple inputs that can be used for temperature control in process applications such as tanks, heater/treaters, fired separators, line heaters, re-boilers or any other applications where accurate temperature monitoring and or control is required. The CSC400 can be configured to be used on incinerators, enclosed combustors, and flare stacks as well. The CSC400 provides two 4-20mA inputs and outputs for shutdown, monitoring, and/or transmitter requirements, as well as Modbus for communication and control.



ACL CSC400 Spec Sheet
ACL CSC400 Manual
Modbus Manual for the ACL CSC400 Controller

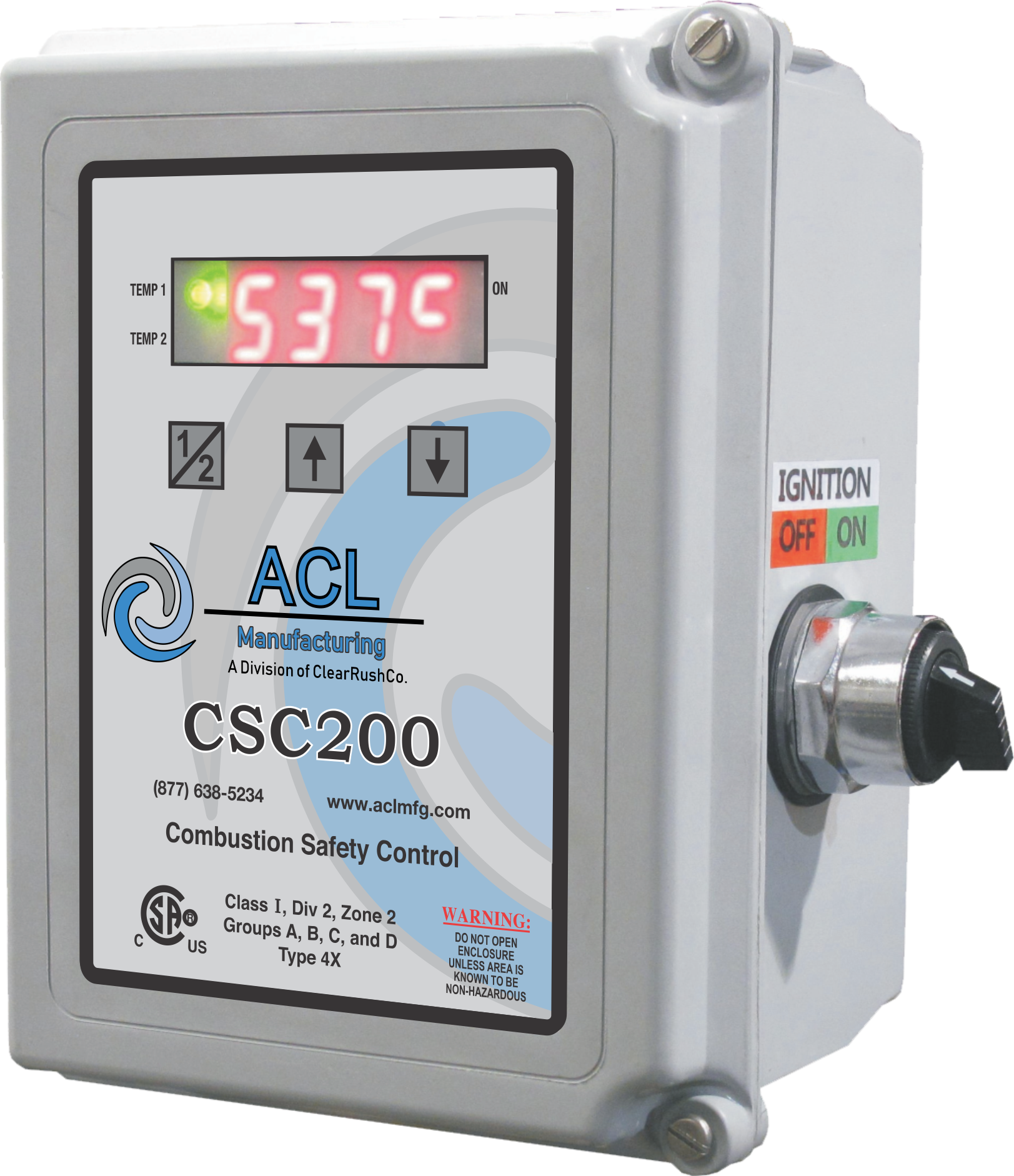

ACL CSC 200 Burner Management Systems/Combustion Safety Controller

The ACL CSC 200 Combustion Safety Controller is a simple to use Burner Management System/Combustion Safety Controller that has an abundance of features with no programming requirements needed. The ACL CSC200 provides burner ignition and flame fail sensing, shutdown monitoring of multiple inputs, as well as monitoring of two separate thermocouple inputs which can be utilized for temperature control in process applications such as tanks, heater/treaters, fired separators, line-heaters, re-boilers or any other application where accurate temperature monitoring or control is required. The system is designed to operate with or without a continuous pilot. The ACL CSC200 has Modbus communication capabilities. The ACL CSC 200 meets and exceeds Canadian B149.3-10 CSA Standards US NFPA86 Guidelines.

Click here to watch the ACL-CSC200 Burner Assembly video!



ACL CSC 200 Spec Sheet
ACL CSC 200 Manual
Modbus Manual for the ACL CSC 200 Controller
